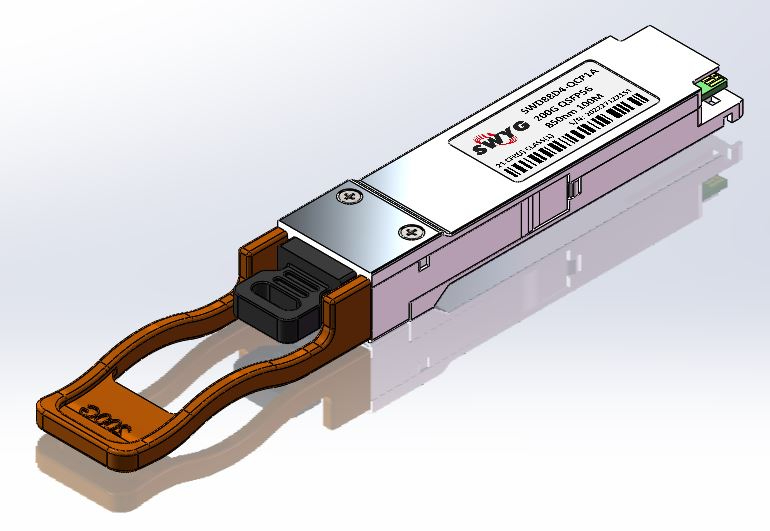

| 200G QSFP56 SR4 | |||
| PN | SWD88P4-QCP1 | Vendor Name | Sanweiphotonics |
| Package | QSFP56 | Data Rate | 200Gbps |
| Wavelength | 850nm | Distance | 100m |
| Connector | MTP/MPO-12 (UPC) | Media | MMF |
| AOP | -3~3dBm | SEN | -6.5dBm |
| Power Consumption | ≤4.8W | ER | ＞3dB |
| Temperature | 0 to 70°C | Modulation | 4x 50G PAM4 |
| 200G QSFP56 FR4 | |||
| PN | SWDCWP4-QC02 | Vendor Name | Sanweiphotonics |
| Package | QSFP56 | Data Rate | 200Gbps |
| Wavelength | 1271-3331nm | Distance | 2km |
| Connector | MTP/MPO-12 (UPC) | Media | MMF |
| AOP | -4.2~4.7dBm | SEN | < -8.2dBm |
| Power Consumption | ≤6.5W | ER | ＞3.5dB |
| Temperature | 0 to 70°C | Modulation | 4x 50G PAM4 |
| 200G QSFP56 LR4 | |||
| PN | SWDLWP4-QC10 | Vendor Name | Sanweiphotonics |
| Package | QSFP56 | Data Rate | 200Gbps |
| Wavelength | 1271-1331nm | Distance | 2km |
| Connector | MTP/MPO-12 (UPC) | Media | SMF |
| AOP | -3.4~5.3dBm | SEN | < -8.2dBm |
| Power Consumption | ≤6.5W | ER | ＞3.5dB |
| Temperature | 0 to 70°C | Modulation | 4x 50G PAM4 |
